Manufacturing
Our Manufacturing Products

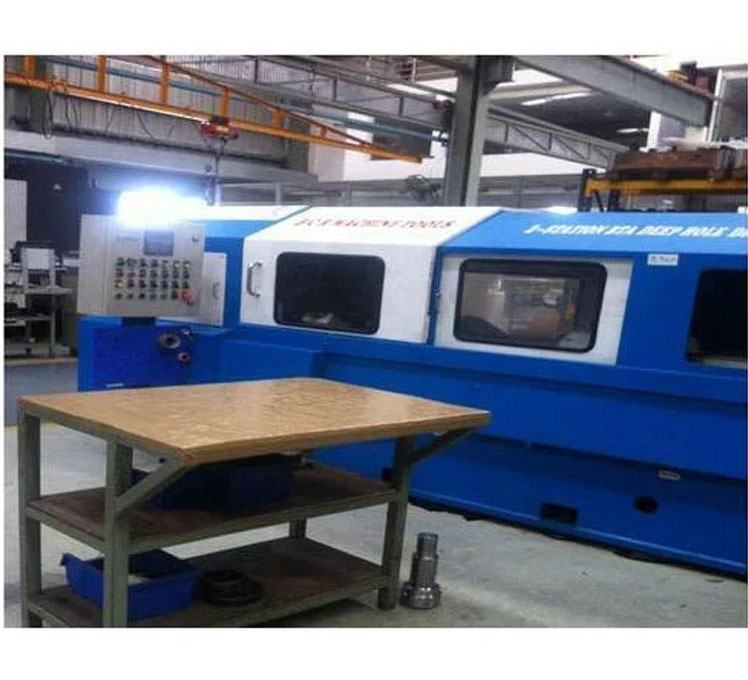

2-Station BTA Deep Hole Drilling Machine For DTH Bits
2 STATION BTA DEEP HOLE DRILLING machine with special execution of Job rotation which is
clamped in power operated self centering chuck on one end and power operated self centering steady rest
on the other end.Rough drilling of max. dia 48 to a depth of dia 400mm in first station and after this ,The
job is indexed to second station to do the finish drilling with spherical endshape.
Heavy Duty Special Milling Head
Heavy duty special milling head with backlash free drive spindle with arbor & its supports with
milling cutters of dia 350 to do the milling surface with end chamfers of total width 30mm for M/s
DLW,VARANASI.
To Access Pedistal And Ajumenths Antena
Special Milling head for key way milling in the bores of min DIA75 towards as on addon equipment on
slotting machine with ballscrew & servomotors which is giving very good performance to M/s EUROFLEX
TRANSMIS.
Self centering leg fixture for welding of legs
The specifications and special features of the Equipment are as follows
- The equipment is power operated self centering clamping fixture.
- It has one central hydraulic cylinder provided underneath the body and its piston while moves up and down operates three bell crank levers simultaneously in turn moves three self centering plungers.
- There are three clamping plungers which are guided in the guide bushes and on one end clamping levers and another end connected to self centering plungers through connecting plate. By this way the clamping levers are operated through self centering plungers and moves in and out to clamp and de clamp the component simultaneously.
- There is a hardened cover provided at the center of the body where the component rests.
- The component is clamped at the top and also at the bottom by providing suitable clamps to the clamping lever.
- This clamping fixture is so designed such that the guided members are well protected from slag formed due to the welding.
3 Access Deep Hole Drilling Machine for Router Turbine Blades
Portable Drill head with torque monitoring and thrust monitoring and 3-axis manual
movement for rotor turbine blade fixing drill holes with taper reaming:(Supplied to
BHEL,Hyderabad).
CNC Indexing head
Cnc Indexing head as add on equipment on the CNC horizontal milling machine for external spline cutting
on rocdrill bits for M/s SAIDEEPA ROCDRILLS PVT LTD. The video of the equipment while working can
be observed in the following link.
Leg fixture with 3-indexings
Leg fixture with 3-indexings hydraulically operated for milling of 120 degrees mill for legs fexture machining center.
Collet Fixtures for the Cones For Mazak Machining
Collet fixtures for the cones to hold in the bore for different sizes of cones to do the drilling operation on
mazak machining centre for M/s ATLAS COPCO.
2 Acess CNC interpolating Buffering Equipment in Heading
We have even supplied an equipment with design & manufacturing of our own to the purpose of catching
the ribbon moving with high speed of 20m per sec and transporting to the winder at a distance of 5 meters
with 2 CNC interpolating axis movement for M/s VIJAI ELECTRICALS LTD,HYDERABAD. And also
special equipment of spindle with runout of 1 to 2 microns and even positioning controls of 1 micron to 2
micron equipment and also varying endstop position by 1 micron to 2 microns.
Backlash free gear boxes
Backlash free gear boxes with double pinion and rack arrangement.
Hollow Spindle Gear Box For Dia 117 Pipes For Rigs For Core Drilling
Power Operated Self Centering Collet Fixture For Clamping 6 ½ "Digger Bit On U-Cam On Vertical Machining Center
Flush Hole Drilling Fixture To Maintain 180 Degree On Drilling Machine.
Hydraulically Operated Button Pressing Fixture By Clamping 6 ½ " Digger Bit.
